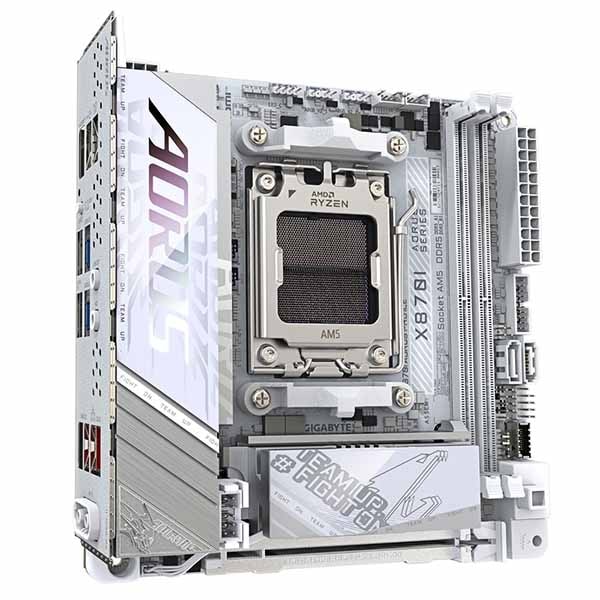

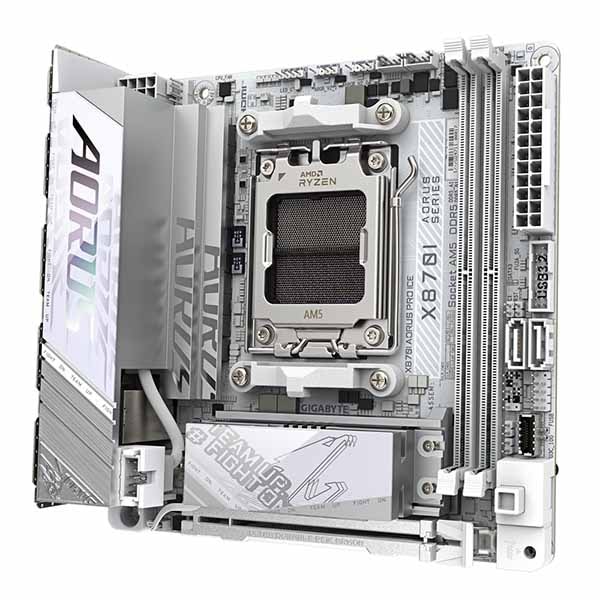

日本代购-GIGABYTE X870I AORUS PRO ICE 最新AMD Ryzen 9000 シリーズ CPU対応、Mini-ITXサイズモデル [特徴] ・DDR5 対応最大 8800MT/s ・AMD Socket AM5:AMD Ryzen 9000 / 8000 / 7000 シリーズ・プロセッサー対応 ・8+2+1 デジタル Twin 電源フェーズ設計 ・Dual Channel DDR5:2 スロット搭載 (EXPO / XMP 対応) ・WIFI EZ-Plug:Wi-Fi アンテナ線のワンタッチ着脱可能 ・EZ-Latch Plus:ネジ不要 M.2 SSD 着脱可能 ・EZ-Latch Click:ネジ不要 M.2 ヒートシンク着脱可能 ・高速ストレージ:1*PCIe 5.0 x4 & 1*PCIe 4.0 x4 M.2 コネクタ ・優れた放熱性:VRM 用 Thermal Armor Advanced & M.2 Thermal Guard Ext. ヒートシンク ・高速ネットワーク:2.5 GbE 有線 LAN & Wi-Fi 7 ・充実した接続性:USB4 Type-C 経由の DisplayPort 接続対応 (DP-Alt) ・高音質オーディオ:Realtek ALC4080 & 高品質音響コンデンサ搭載 ・Ultra Durable PCIe アーマー:PCIe x16 スロット用金属製バックプレートによる耐久性向上 ・PCIe UD Slot X:従来の約10倍強度を有する PCIe 5.0 x16 スロット ・Q-Flash Plus 搭載 [仕様] 製品名 GIGABYTE X870I AORUS PRO ICE 対応ソケット AMD Socket AM5 対応CPU AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 シリーズ プロセッサー ※詳細については、メーカーの CPUサポートリスト をご参照ください。 搭載チップセット AMD X870E メモリスロット 2 x DDR5 DIMM 対応メモリスピード DDR5 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s メモリモジュール ※詳細については、メーカーのメモリーサポートリストをご参照ください。 メモリスロット最大搭載容量 最大128GB(64GB x4) メモリチャンネルアーキテクチャー デュアルチャンネル 対応メモリプロファイルタイプ XMP ECCメモリ対応 non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 メモリモジュール AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) メモリモジュール グラフィックス出力機能 Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller: – 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) 拡張スロット 1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. マルチGPU対応 − オーディオ機能 Realtek ALC4080 CODEC High Definition Audio 2-channel ストレージ機能 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs 2 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0 and RAID 1 support for SATA storage devices USBポート CPU+ASMedia USB4 controller: – 1 x USB4 USB Type-C port on the back panel CPU: – 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset: – 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) – 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) ネットワーク機能 Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 無線ネットワーク機能 Realtek Wi-Fi 7 RTL8922AE – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no supportdriver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations. バックパネルポート 1 x Q-Flash Plus button 1 x HDMI port (Note) 2 x antenna connectors (2T2R) 1 x USB4 USB Type-C port (DisplayPort (Note)) 1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x audio jacks (Note) Actual support may vary by CPU. バンドルソフトウェア Norton Internet Security (OEM version) LAN bandwidth management software 対応OS Windows 11 64bit フォームファクター Mini-ITX(17.0 x 17.0 cm)
